What are the materials used in FDM process?

ABS

An ABS prototype has up to 80% of the strength of injection moulded ABS meaning that it is extremely suitable for functional applications.

ABSi

ABSi is an ABS type with high impact strength. The semi-translucent material used to build the FDM parts is USP Class VI approved.

ABS-M30

ABS-M30 is 25-75% stronger than the standard ABS material and provides realistic functional test results along with smoother parts with finer feature details.

ABS-ESD7

ABS-ESD7 is a durable and electrostatic dissipative material suited for End-use components, Electronic products, Industrial equipment and Jigs and fixtures for assembly of electronic components.

PC-ABS

PC-ABS is a blend of polycarbonate and ABS plastic which combines the strength of PC with the flexibility of ABS.

PC-ISO

PC-ISO blends are widely used throughout packaging and medical device manufactures. The PC-ISO material used to build the FDM parts is USP Class VI approved and also ISO 10993-1 rated.

ULTEM 9085

ULTEM 9085 is a pioneering thermoplastic that is strong, lightweight and flame retardant (UL 94-V0 rated). The ULTEM 9085 material opens up new opportunities for the direct additive construction of production grade components.

CLICK HERE FOR MORE INFO

What are Technical specifications of FDM?

Standard lead time:

4-5 days

Layer thickness:

0.18 - 0.25mm (for ABS)
0.18 - 0.25mm (for ABSi)
0.18 - 0.25mm (for PC)


Maximum Part Dimensions:

Dimensions are unlimited as components may be composed of several sub-parts.The maximum build envelope is 914x610x914mm.

CLICK HERE FOR MORE INFO

Few good reasons to choose FDM!

• High accuracy

• Functional parts

• Water-soluble support structure

• Production materials

• Durable parts with great stability

• Short throughput times thanks to large capacity

CLICK HERE FOR MORE DETAILS

Why choose Fused Deposition Modelling?

• Prototypes for functional testing; you can install and run the parts in your production intent material for the best possible proof that your design really works
• Prototypes for form and fit testing
• Prototypes directly constructed in production materials
• Quality parts with a high stability
• Durable single piece parts up to 900 x 600 x 900 mm
• Low volume production

CLICK HERE FOR MORE DETAILS

What is meant by Fused Deposition Modeling (FDM)?

                    The system operates in X, Y and Z axes, drawing the model one layer at a time. This process is similar to how a hot glue gun extrudes melted beads of glue. The temperature-controlled extrusion head is fed with thermoplastic modeling material that is heated to a semi-liquid state. The head extrudes and directs the material with precision in ultrathin layers onto a fixtureless base. The result of the solidified material laminating to the preceding layer is a plastic 3D model built up one strand at a time. Once the part is completed, the support columns are removed and the surface is finished.

CLICK HERE FOR MORE DETAILS

Characteristics of TPU 92A-1 ?

           TPU 92A-1 is a fully-functional flexible and strong material. TPU 92A-1 is the only 3D Printing material that combines:

• Durable elasticity
• High tear resistance
• High resistance to dynamic loading
• High abrasive resistance
• Snappy response
• Good temperature range (-20°C to 80°C)

CLICK HERE FOR MORE INFO

What are materials used in laser sintering technology?

1) Polyamide (PA)

2) Glass filled polyamide (PA-GF)

3) Alumide

4) PA 2241 FR

5) TPU 92A-1

CLICK HERE FOR MORE DETAILS

What are the common Technical specifications of Laser sintering?

Standard lead time:

Minimum of 4 working days, depending on part size, number of components and finishing degrees.
Minimum of 2 working days for smaller parts.

Standard accuracy:

± 0.3% (with lower limit on ± 0.3 mm)

Minimum wall thickness:

1 mm, but living hinges are possible at 0.3 mm

Maximum part dimensions:

Dimensions are unlimited as components may be composed of several sub-parts. The build area of the largest machine is 650 x 330 x 560 mm.

Surface structure:

The parts typically have a grainy surface but all kinds of (very) fine finishing are possible. They can be sandblasted, coloured (impregnated), painted, covered, coate

CLICK HERE FOR MORE DETAILS

Why choose selective laser sintering?

• Fully functional prototypes with mechanical properties comparable to those of injection moulded PA12 parts
• Series of small components as a cost-effective alternative to injection moulding
• Large and complex functional parts up to 700x380x580 mm in one piece
• Personalised Manufacturing, i.e. the production of unique, complex, personalised designs built as once-only products or in small batches.

CLICK HERE FOR MORE INFO

What is meant by Laser Sintering: a 3D Printing Technology?

                             Selective Laser Sintering is also a technique by which parts are built layer by layer. The basic material consists of powder with particle sizes in the order of magnitude of 50 µm. Successive powder layers are spread on top of each other. After deposition, a computer-controlled CO₂ laser beam scans the surface and selectively binds together the powder particles of the corresponding cross section of the product. During laser exposure, the powder temperature rises above the glass transition point after which adjacent particles flow together. This process is called sintering.

CLICK HERE FOR MORE INFO

Materials for Polyjet?

VeroWhitePlus and TangoBlackPlus.

Objet VeroWhitePlus is a general-purpose resin and has a white colour offering enhanced mechanical properties and the ability to withstand bending.

Objet TangoBlackPlus is a flexible rubber-like resin, offering exceptional elongation at break, making it suitable for prototypes of rubber components like seals, non-slip surfaces, etc.

We also have 6 composite materials with preset combinations of mechanical properties: Shore A40 - Shore A50 - Shore A60 - Shore A70 - Shore A85 - Shore A95.

CLICK HERE FOR MORE DETAILS

Technical specifications Polyjet?

Standard lead time:

2-4 working days

 Accuracy:

0.1-0.3mm (accuracy varies according to geometry, part orientation and print size)

 Surface structure:

Basic finish - Normal finish (sandpapered) - Master finish

 Maximum part dimensions:

500x400x200 mm (x,y,z)

CLICK HERE FOR MORE DETAILS

what is meant by Polyjet 3D printer?

  Polyjet: a 3D Printing Technology

Objet’s patented PolyJet inkjet technology works by jetting state-of-the-art photopolymer materials in ultra-thin layers (16µ) onto a build tray layer by layer until the part is completed. The intuitive Objet studio™ software manages the process.
Each photopolymer layer is cured by UV light immediately after it is jetted, producing fully cured models that can be handled and used immediately, without post-curing. The gel-like support material, which is specially designed to support complicated geometries, is easily removed by hand and water jetting.

CLICK HERE FOR MORE DETAILS

Some good reasons to choose stereolithography?

• Fast: Parts in as little as 2 days
• High level of accuracy and high surface quality
• Representative parts for visual testing
• Functional parts
• Small and large parts - from intricate switch component to car dashboard built in a single piece
• Wide range of finishing options
• Wide range of materials

CLICK HERE FOR MORE DETAILS

Why choose stereolithography?

• “Show and tell” parts with smooth surfaces and fine details
• Visual prototypes for photo shoots, market testing and checking 3D drawings
• Prototypes for limited functional testing
• Masters for copying techniques (Reaction Injection Moulding & Vacuum casting )
• Metal components when coated with the metal plating process
• Low volume production of complex geometries

CLICK HERE FOR MORE DETAILS

More Process Info of stereolithography?

Most SLA machines can produce parts with a maximum size of     20” x 20” x 24”.

  Producing parts through stereolithography can take anywhere fro a few hours to more than a day. It depends on the size and complexity of the product.

How Does Stereolithography Works?

•

•       Stereolithography is an additive fabrication process utilizing a vat of liquid UV Curable photopolymer “resin” and a UV laser to build parts a layer at a time.
•

•        On each layer, the laser beam traces a part cross-section pattern on    the surface of the liquid resin.
•

•         Exposure to the UV laser light cures, or, solidifies the pattern traced    on the resin and adheres it to the layer below.

CLICK HERE FOR MORE DETAILS

What is Stereolithography?



Stereolithography, also known as 3-D layering or 3-D printing, allows you to  create solid plastic, three-dimensional (3-D) objects from CAD drawings in a matter of hours.



                         “Stereolithography is a common  rapid manufacturing and rapid prototyping technology for producing parts with high accuracy and good surface finish. A device that performs stereolithography is called an SLA or Stereolithography Apparatus.”

CLICK HERE FOR MORE DETAILS

Function of 3D printing?

3D Printing can be used to create functional plastic components for:

•    Complex industrial machines and equipment
•    Medical devices
•    Customized manufacturing tools such as jigs and fixtures
•    Grippers for assembly lines

CLICK HERE FOR MORE INFO

Why i Choose 3D Printing?

5 Reasons to Choose 3D Printing

• Design complex components without adding cost
• Surpass limitations of conventional technologies
• Change designs without hassle
• Skip investment in manufacturing tools
• Shorten time to market

CLICK HERE FOR MORE TECHNICAL ASSISTANCE

Where all 3D printing used?

Find the proven Rapid Prototyping solutions for your industry

• Automotive
• Consumer Goods
• Industrial Goods
• Art
• Architecture
• Aerospace

Nature of Carbon Fiber Reinforced PLA?

Proto-Pasta Carbon Fiber reinforced PLA is made from NatureWorks 4043D PLA Resin compounded with 15% by weight Tenax short chopped Carbon Fibers. It is designed to be stiff, or to resist bending. It is the stiffest material we offer and makes parts with an incredibly solid feel. When printed, this material is a dark glossy black that glitters slightly in direct light from the fine chopped fibers reflecting the light.

CLICK HERE FOR MORE INFO

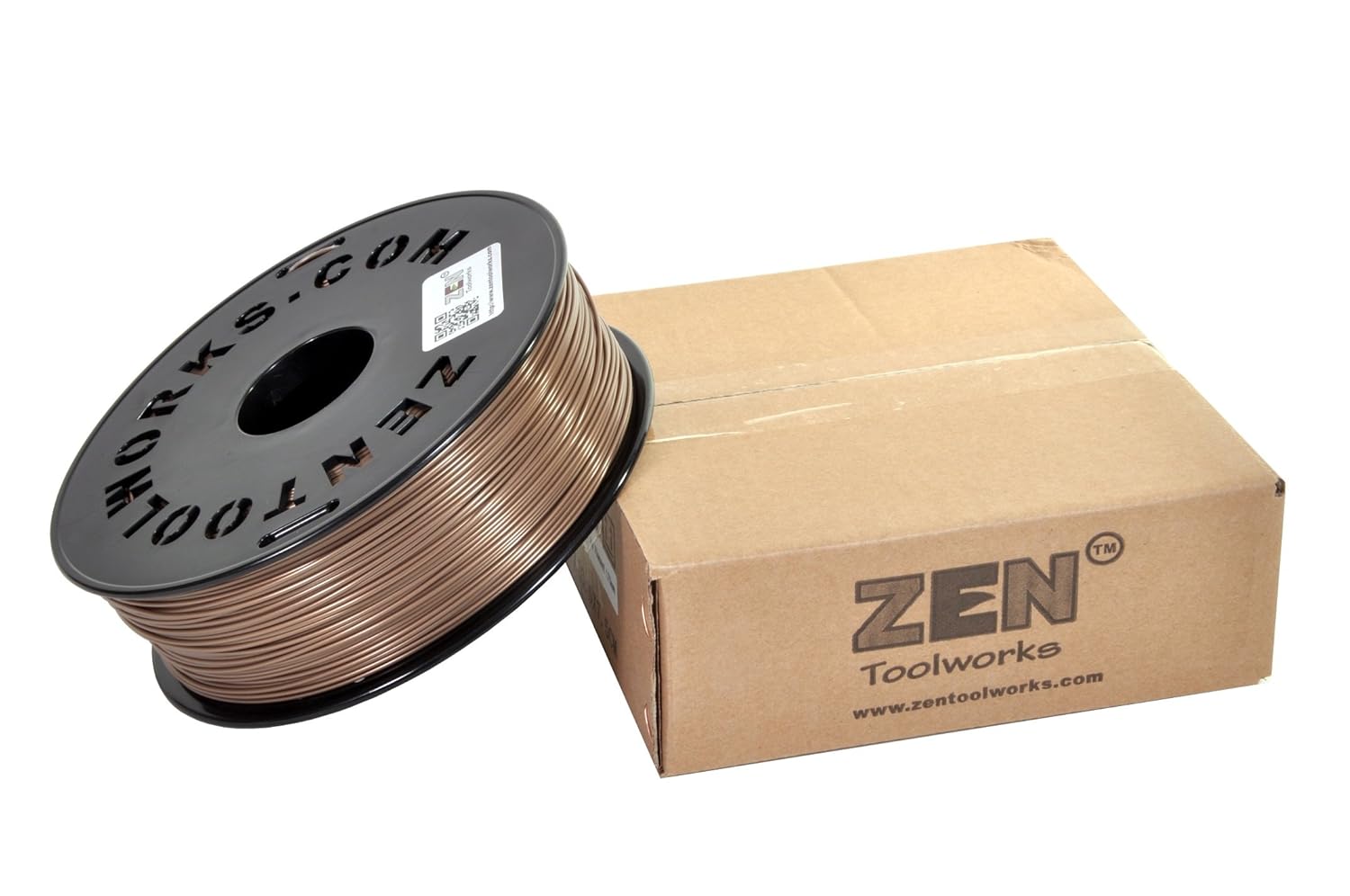

Nature of Bronze PLA Filament?

BronzeFill is a PLA/PHA based compound mixed with 80% fine bronze powder. The material is four times heavier than standard PLA. It has a density of approx 4 gr/cc (cubic centimeters) and feels like real metal. Bronzefill can be polished to get the beautiful metallic sheen as all other solid bronze products. After polishing, the normal visible layer lines disappear and the bronze object begins to stand out. ColorFabb says it will start doing intensive material tests in the next two months. Meanwhile they are looking for alternative methods to polish delicate printed parts in the easiest and most effective way.

 CLICK HERE FOR MORE INFO

Nature of Laywood?

Laywoo-D3 (LayWood) is a wood based filament that can be used in most desktop 3D printers. The wood filament prints easily, similar to PLA, and has a wood smell when printing.

The material has shown no warping tendencies when printed on a heated bed during testing. Possible extrusion temperature is fairly wide with a good starting point at 180C. Hotter temperatures will extrude a darker filament; using variable temperatures during a print, a faux wood ring pattern can be generated. Finished prints can also be easily sanded.

In general, if you have printed with PLA you should be able to quickly start printing with the Laywoo-D3 filament. This 3mm diameter filament comes in a 0.25kg coil and has a cherry wood color.
